See further down the page for parts by Alan Gibson and Bill Bedford

SSMRS Wagon Kits

These kits are available to members only from the Parts Officer of the SSMRS



WP1 Plastic RCH 1907 wagon - set of sides, ends and solebars.

WE1 GWR Small Cattle Wagon, Dia. W3 (set of etches only)

GWR Small Cattle Wagon

WE2 NER Cattle Wagon, Dia. K1 (set of etches only)

NER Cattle Wagon

WE3 NER 10 Ton Perishable Goods Van (set of etches only)

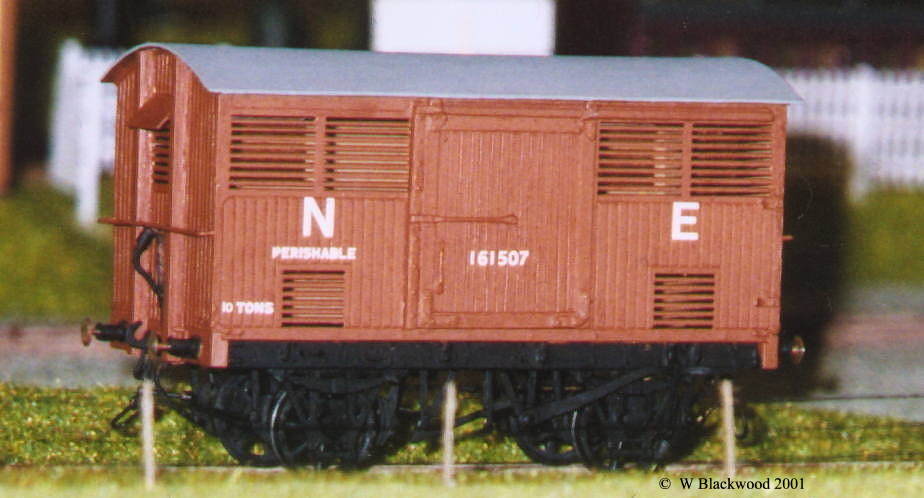

NER 10 ton Perishables Van

WE4 GNR 8 Ton Van (set of etches only)

GNR 8 Ton van

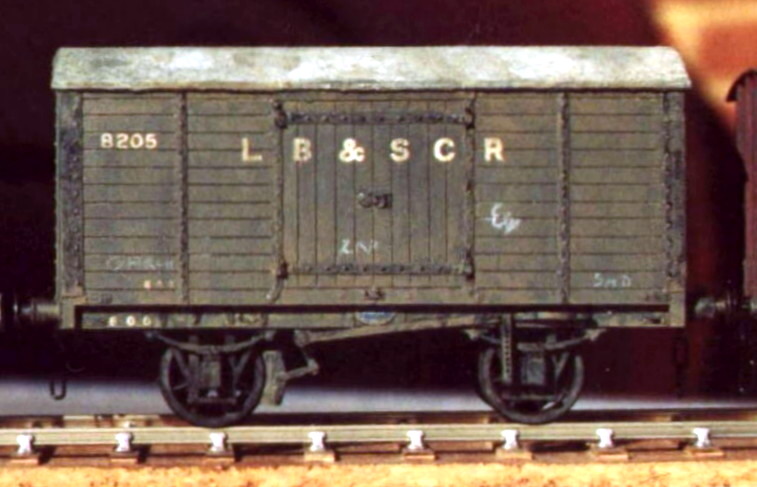

WE5 LBSCR 8 ton van (set of etches only)

WE6 LNER 12 ton goods van (set of etches only)

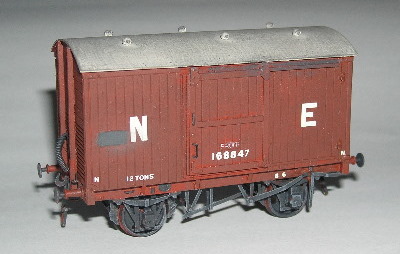

WE7 LNER 12 ton fruit van (set of etches only)

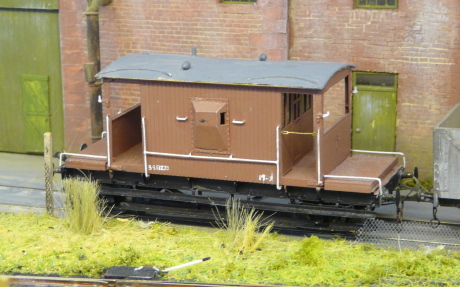

WE8 BR 20 ton Brake van (set of etches only)
WE9 Cambrian/GWR/BR 15t Brake van (set of etches only)
WE10 Barry Railway twin-bolster (set of etches only)
WE1117' 6" steel framed wagon underframe 9' wheelbase (Gibson)
WE1217' 6" steel framed wagon underframe 10' wheelbase (Gibson)
WE13 LMS D1885 Fish van Etched sides cast ends/doors (Gibson)
WE14LMS D1670 meat van Etched sides cast ends/doors (Gibson)  Similar to WE13 above but with different ends
WE15LMS D1817 beer van Etched sides cast ends/doors (Gibson)
WE16

GER passenger train cattle wagon etched +

whitemetal springs/axleboxes

WC1 1907 7 plank RCH mineral wagon (whitemetal body parts and solebar)

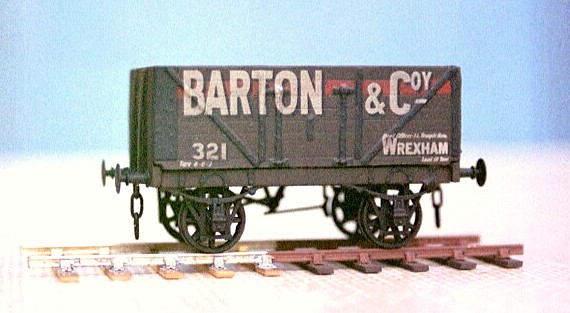

RCH 7 Plank Mineral wagon

WC1a

RCH 1907 PO 7 plank mineral wagon (side & end doors) complete underframe (cast whitemetal)

WC1b

RCH 1907 PO 7 plank mineral wagon (side doors only) complete underframe (cast whitemetal)

WC1c RCH 1907 PO complete underframe (cast whitemetal)
WC2 Cambrian 2 plank general merchandise & slate wagon (whitemetal body parts) per set

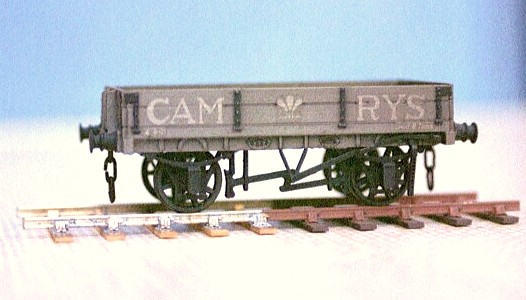

Cambrian 2 plank wagon

WC3 North British Dia.77 3 plank open wagon (whitemetal body parts) per set

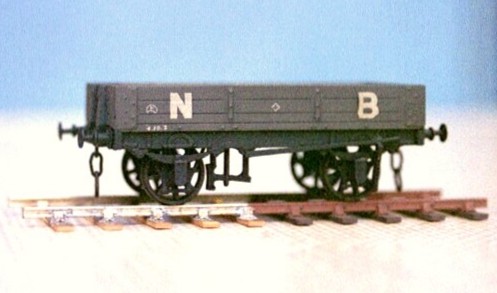

North British Dia 77 3 Plank wagon

WC4 MR Diag 299 open wagon (whitemetal body and solebar parts) per set

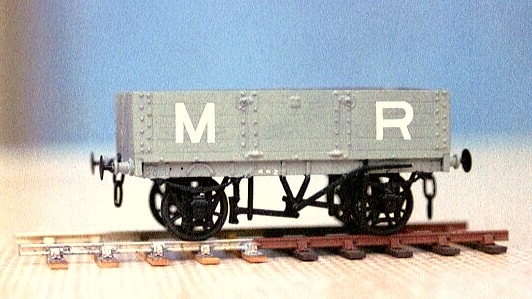

MR Diag 299 Open wagon

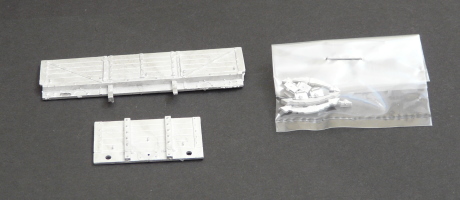

WC5LBSCR Dia 1369 5 plank open wagon body with solebars, cast whitemetal (Gibson)
WC6

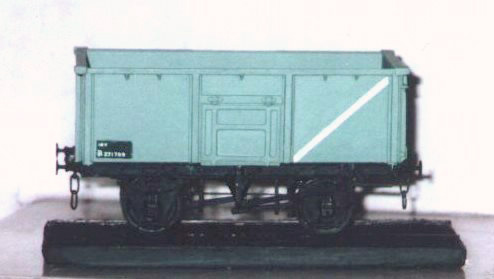

BR Diagram 1/108 16 ton Mineral wagon without top doors including floor body support brackets, axleboxes (whitemetal body parts).  This represents a late BR rebodied wagon  (Alan Gibson).

WC7

BR Diagram 1/108 16 ton Mineral wagon with top doors including floor body support brackets, axleboxes (whitemetal body parts) (Alan Gibson).

WC8LMS 3 plank 17'6" Open body including spring/axleboxes
WC9LMS 3 plank 17'6" Open body including spring/axleboxes

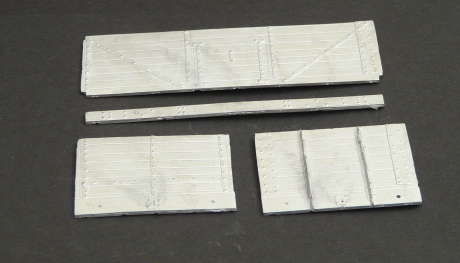

WC10

LMS/LNER?RCH 1923 PO 7 Plank. Side and end door mineral wagon body.



Wagon Parts

These parts are available to members only from the Parts Officer of the SSMRS

WA1

Wagon axlebox, RCH oil, wooden solebar, (whitemetal)

set of 4

WA2

Wagon axlebox, GER 'E' grease, wooden solebar (whitemetal)

set of 4

WA3

Wagon axlebox, Gloucester grease, wooden solebar (whitemetal)

set of 4

WA4

Wagon axlebox, Attocks grease, wooden solebar (whitemetal)

set of 4

WA5

Wagon axlebox, Surrey-Warner (whitemetal)

set of 4

WA6

Wagon axlebox, William Panter (whitemetal)

set of 4

WA7

Wagon Axlebox, BR Plate(whitemetal)

set of 4

WA8

Wagon axlebox, MR Ellis (whitemetal)

set of 4

WA9

Wagon axlebox, BR SKF Roller bearing (whitemetal)

set of 4

WA10

Wagon axlebox, BR Timken Roller Bearing (whitemetal)

set of 4

WB1

Etched brake gear 1907 P.O. (Bill Bedford) - new design



per set

WB2

Etched brake gear 1923 P.O. (Bill Bedford) - new design



per set

WB3

Etched brake gear GWR D/C (Bill Bedford)



per set

WB4

Etched MR short brake levers (8) (Bill Bedford)



per set

WB5

Etched MR long brake levers (8) (Bill Bedford)



per set

WB6

Etched RCH pin-down wagon brake levers and guides (4)



per set

WB7

Brake gear for 9' wheelbase wagon (whitemetal)

each

WB8

Brake block & hanger, Midland Railway / RCH (whitemetal)

set of 4

WB9

Brake gear for 10' wheelbase wagon (whitemetal)

each

WB10

Brake block & hanger, Midland Railway wagons pre-1907 (whitemetal)

set of 4

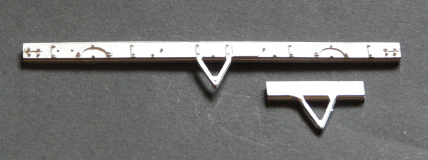

WD1

9' wheelbase solebar, with V hangers (cast whitemetal)

each

WD2

Wooden Van end stanchions (cast whitemetal)

each

WD3

LMS/LNER Van sliding doors (cast whitemetal)

each

WD4

Veranda weights for BR Brake van (cast whitemetal)

each

WD5

Duckets for BR brake van (cast whitemetal)

pair

WD6

Chimney for BR brake van (cast whitemetal)

each

WD7LMS van end cross braced cast whitemetaleach
WD8LMS van end ventilator hood cast whitemetaleach
WD9LMS van sliding door (no horizontal door bar) cast whitemetalpair

WG1

Wagon spring, 4-leaf

set of 4

WG2

Wagon spring, 9-leaf

set of 4

WG3

Wagon spring, 4-leaf (suitable for steel solebar wagons)

set of 4

WS1

Wagon buffer stock, ribbed - no rams (whitemetal)

set of 4

WS2

Wagon buffer stock, plain, short, no rams (whitemetal)

set of 4

WS3

Wagon buffer stock, plain, long, no rams (whitemetal)

set of 4

WS4

Buffer stock, Midland Rly, 10T - 20T brakes, cattle & open wagons (whitemetal)

set of 4

WS5

Wagon buffer stock, long thin flared base w/m rams

set of 4

WS6

Wagon buffer stock, fat taper with w/m rams

set of 4

WS7

Wagon buffer stock, thin taper with w/m rams

set of 4

WS8

Wagon buffer stock, Dowty 24" with w/m rams

set of 4

WS9

Wagon buffer stock, 2 rib (G.W.) with w/m rams

set of 4

WS10

Wagon buffer stock with w/m rams Browns patent

set of 4

WU1

Wagon underframe ironwork, etched, 3+ wagons (Ambis)



per set

WV1

Cast whitemetal drop down vacuum pipes

per pair

WV2

Cast whitemetal vacuum cylinder

each

WV3

Cast whitemetal vacuum changeover switch for 16T mineral wagons

each

WIBR

Etched rocking BR W-iron with ironwork (MJT)



per pair

WIGW

Etched rocking GWR/RCH W-iron with ironwork (MJT)



per pair

WIHD

Etched rocking BR heavy-duty W-iron with ironwork (MJT)



per pair

WIS

Etched narrow W-irons, four separate (Bill Bedford)



set of 4

WIGN

GNR Etched rocking W-irons with ironwork



set of 4



Wagon transfers

Waterslide transfers produced for the SSMRS by Fox.

FO1FRH 6100:S GWR Waterslide wagon transfers: pre 1894

per pair

FO2FRH 6101:S GWR Waterslide wagon transfers: pre 1904 - 191

per pair

FO3FRH 6102:S GWR Waterslide wagon transfers: pre 1920 - 1936

per pair

FO4FRH S610 MR Waterslide wagon transfers

per sheet

Cambridge Custom Transfers are now doing their comprehensive list of BR era wagon transfers in S Scale.

Alan Gibson Parts

A selection of Alan Gibson S scale kits and parts is also available either through the society or direct. For the prices of Alan Gibson's parts see his Web site.

SM04 1923 RCH 7 plank kit - ironwork etchings plus castings and wheels
SM06 Etched brass 9' underframe kit with cast body, etc. for LMS D 1666 open
SM697 Set of 4 RCH axlebox and spring castings (steel solebar)
SM698 Set of 4 MR Ellis axlebox and spring castings (wooden solebar)
SM33 Etched brass Wagon strapping sheet
SM40 17'6" x 9' steel underframe kit. Requires buffers, wheels and waisted bearings AB2
SM41 17'6" x 10' steel underframe kit. Requires buffers, wheels and waisted bearings AB2



Bill Bedford Parts

Bill Bedford has an extensive S scale Catalogue of kits (including some wagons) which can be produced to order directly from Bill (not via the SSMRS). Bill aims for a 6-8 week production cycle, but this can be extended if for instance he cannot fill particular sheets of if he gets sidetracked by other work. Delivery times are minimum of 4 weeks though 12 weeks is more typical. If delivery could be a problem it is best to check with him before ordering.

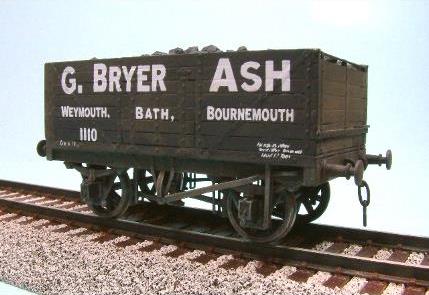

A Bill Bedford PO wagon kit in S Scale built by John Holden:Photo J Prior
